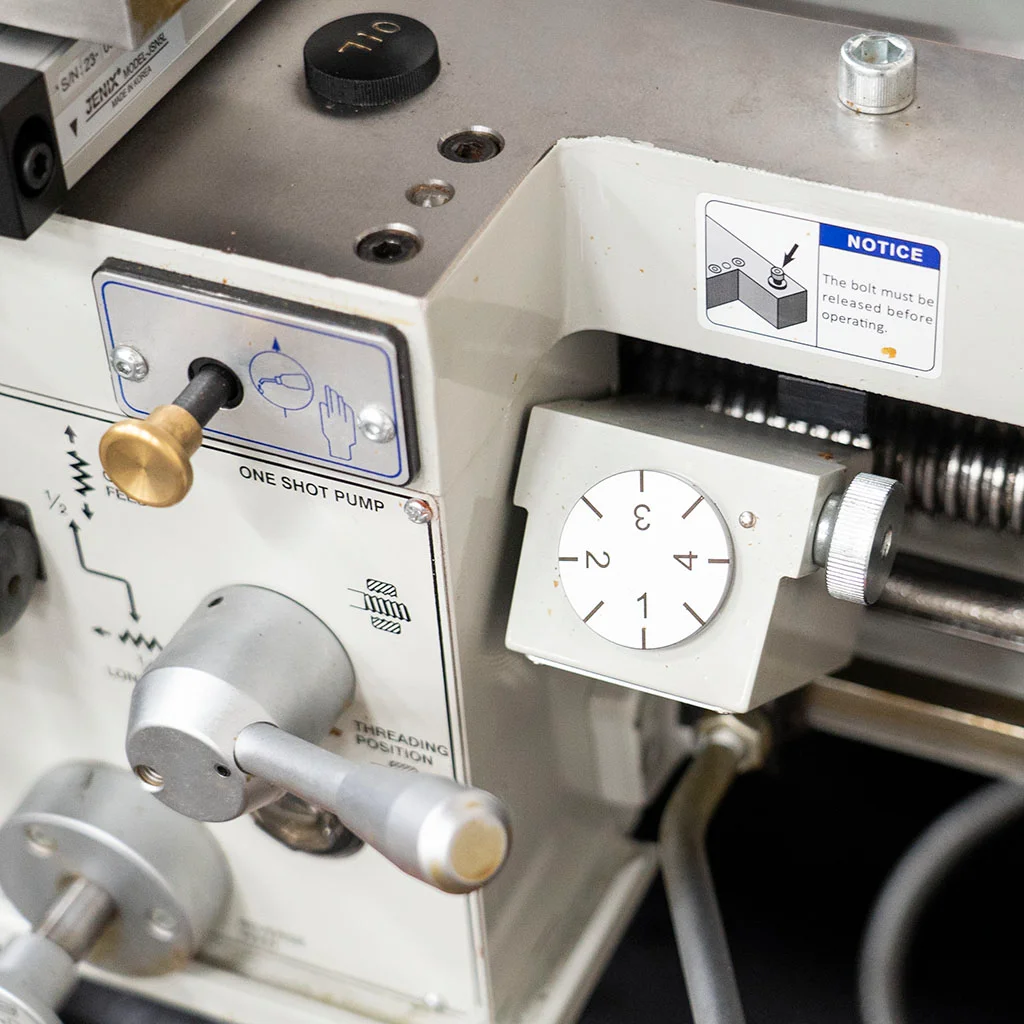

E.V.S models with auto-lubrication system to the cylinder head & external tank for cooling the oil.
All models with solid one-piece stand.

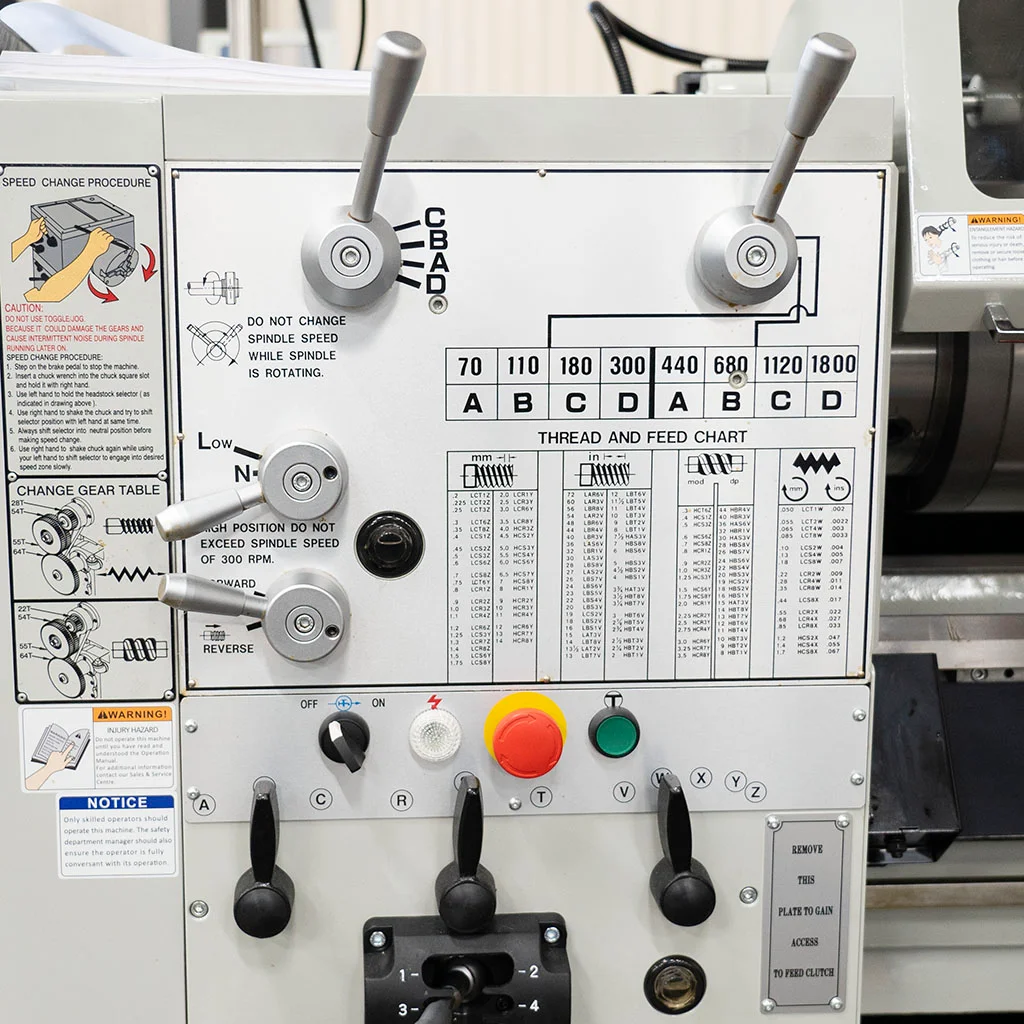

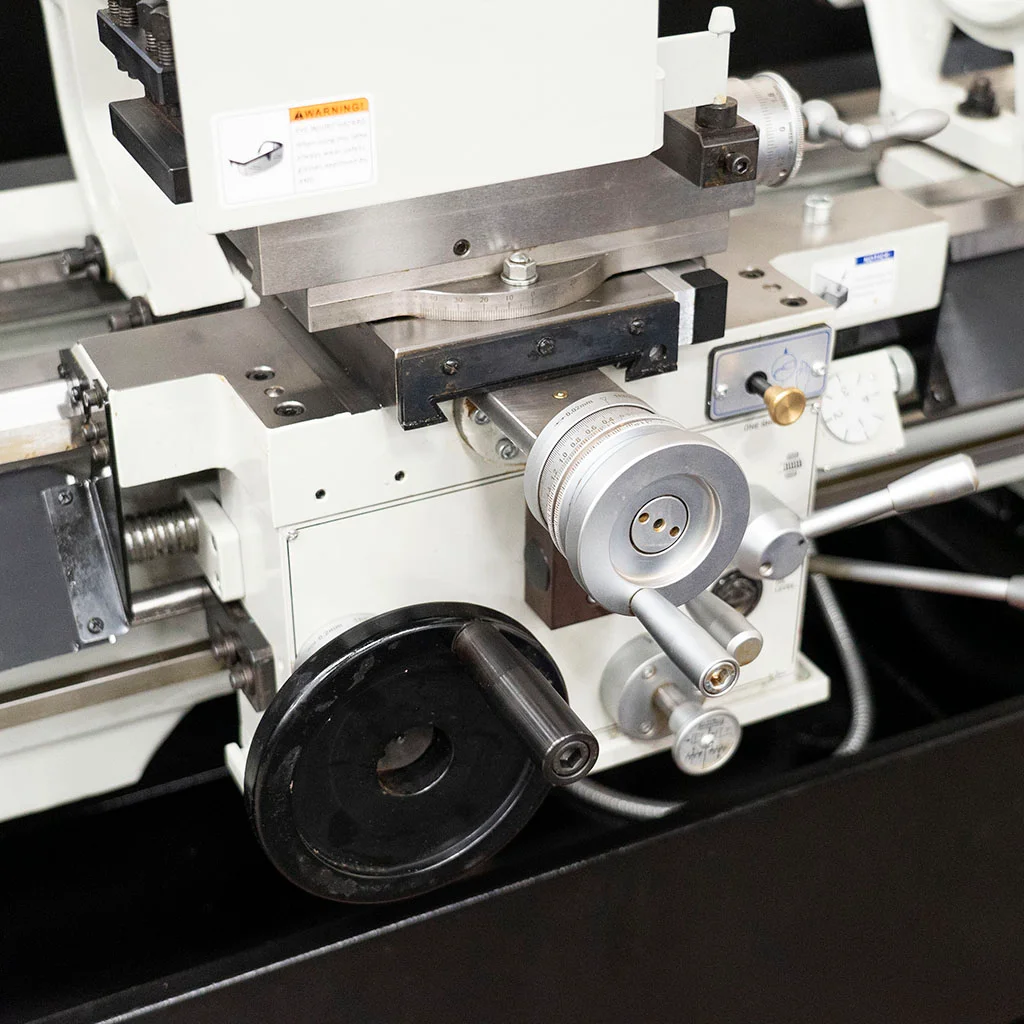

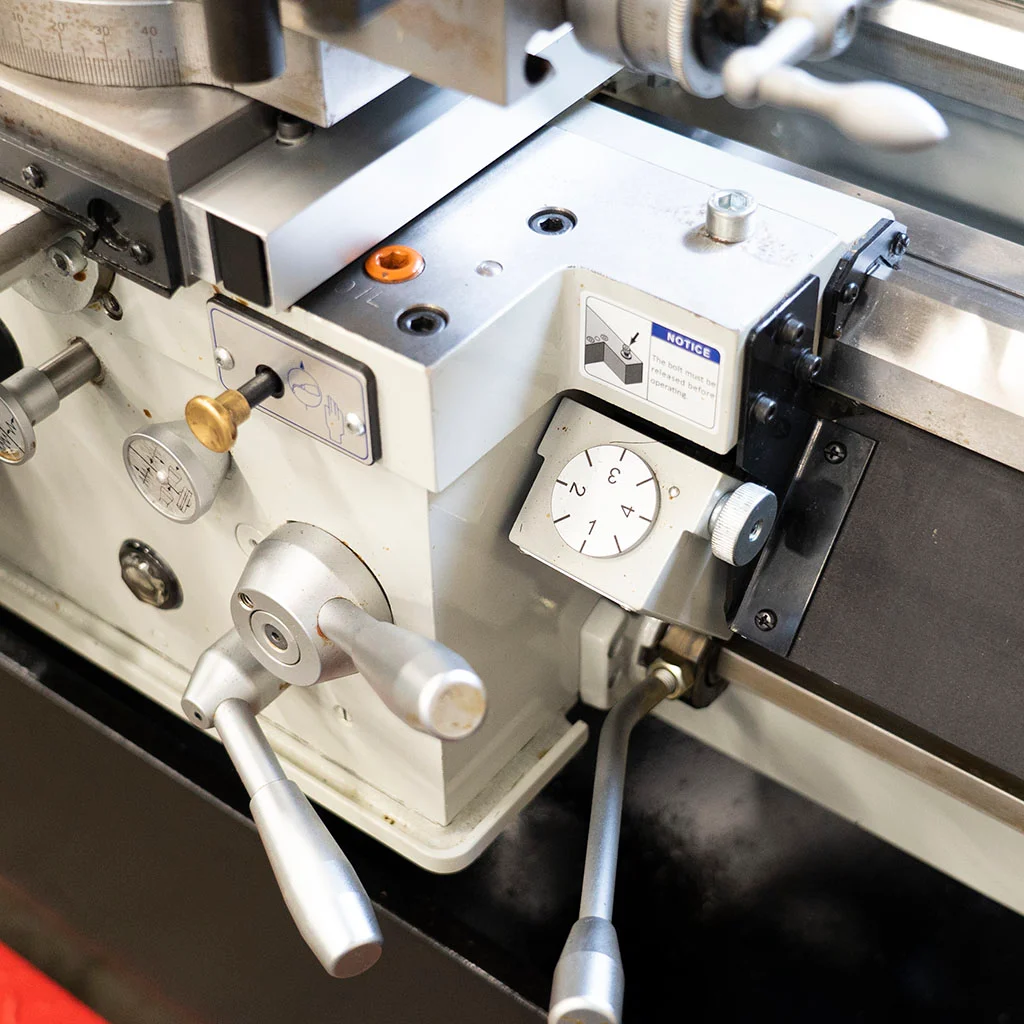

All models with universal feed gearbox & reversible apron.
All models are CE compliant.
All models with 52.5 mm (2.066″) spindle hole, ASA D1-6.
Features
All castings are properly stabilized and stress relieved.
The guides are hardened and honed to perfection. HRC48-55
Turcite B coating between bed and trolley.
Extremely low noise level.
Foot brake pedal included.
Built-in coolant pump and fitting included.
CSS (constant surface speed control) on request for E.V.S. model.
Wider bed path that absorbs vibrations.
Standard accessories

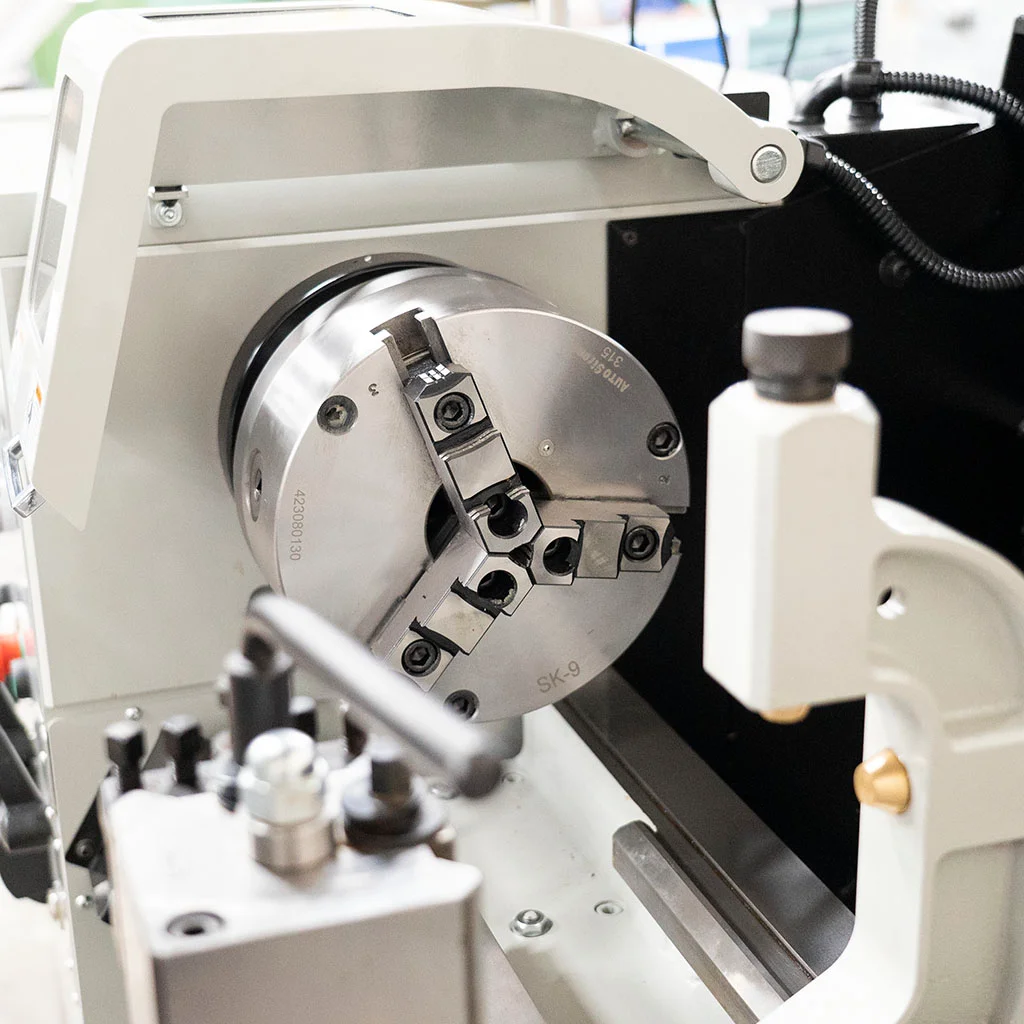

Backing plate for 9″ chuck
Support layer MT. No 4
Support layer MT. No. 4 with carbide tip
Spindle attachment MT. No. 6
Machine feet 6 pcs
Toolkit & Box
Operating instructions and spare parts list

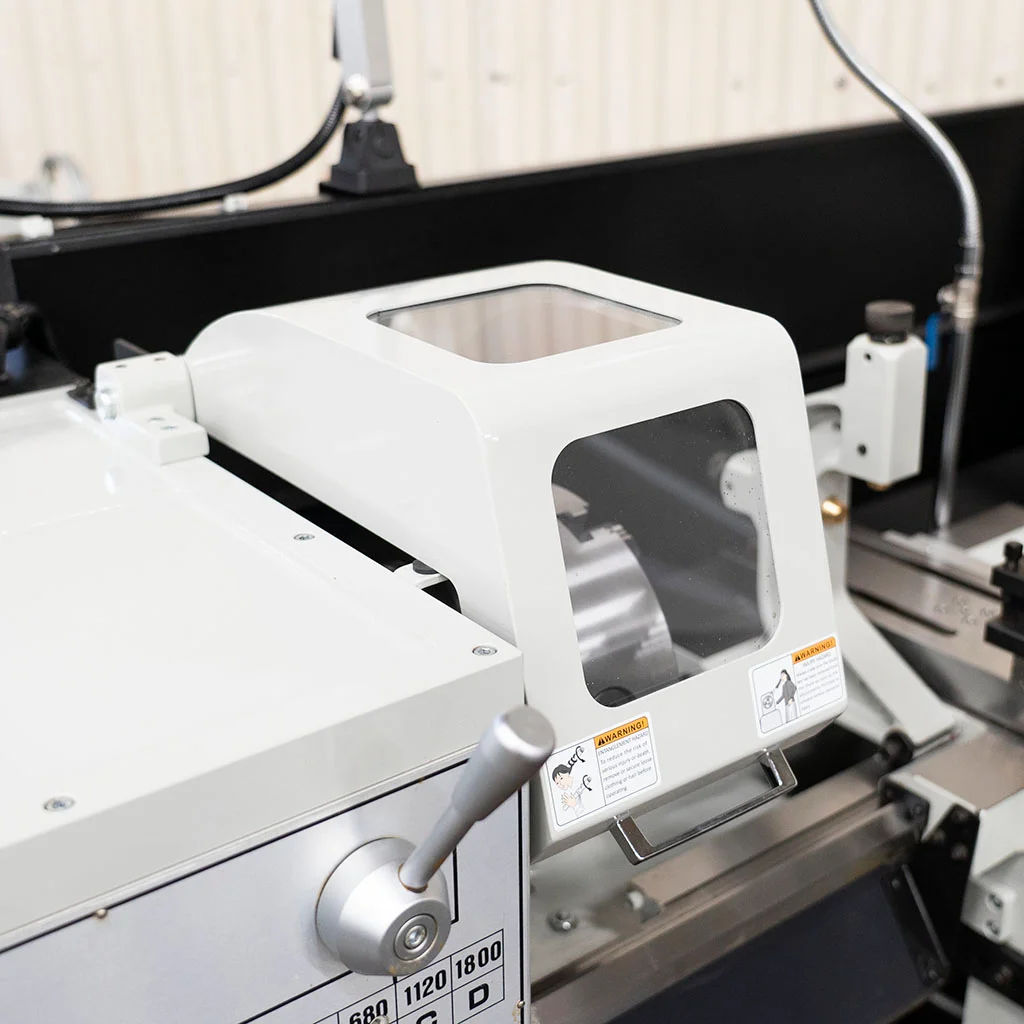

Full-length splash guards
Work lamp
Stud height
205mmCenter distance
1000mmSwing over bed
410mmSwing over transverse slide
262mmSwing over gap
583mmX axis movement
220mmSpindle effect
3.75kwSpindle taper
D1-6Spindle speed
36-1800rpmSpindle bore
52,5mmMachine weight
1400kgLASSE CEHLIN
