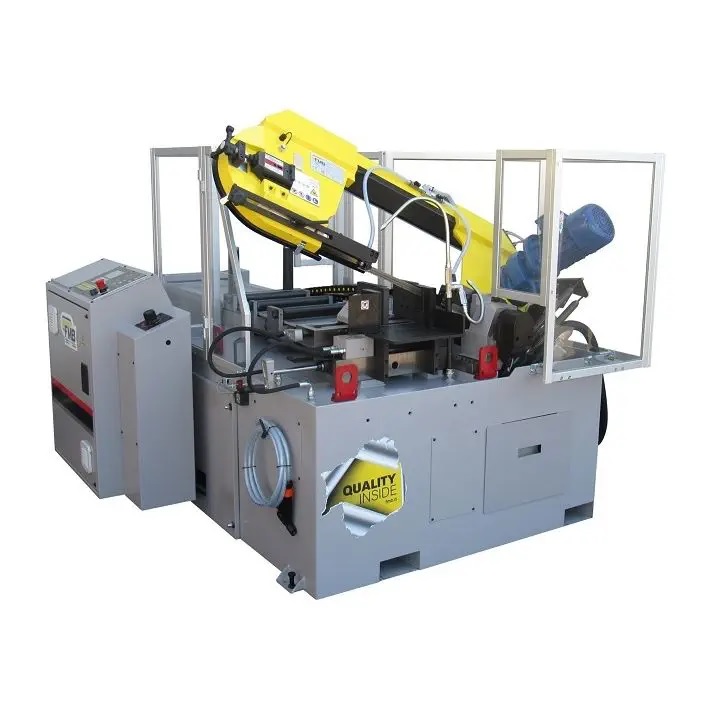

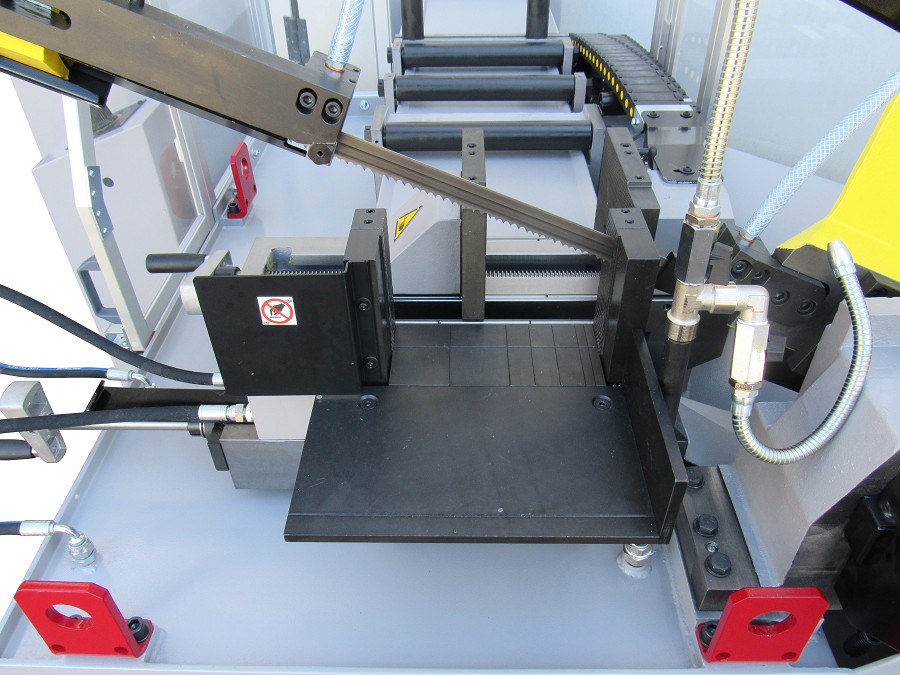

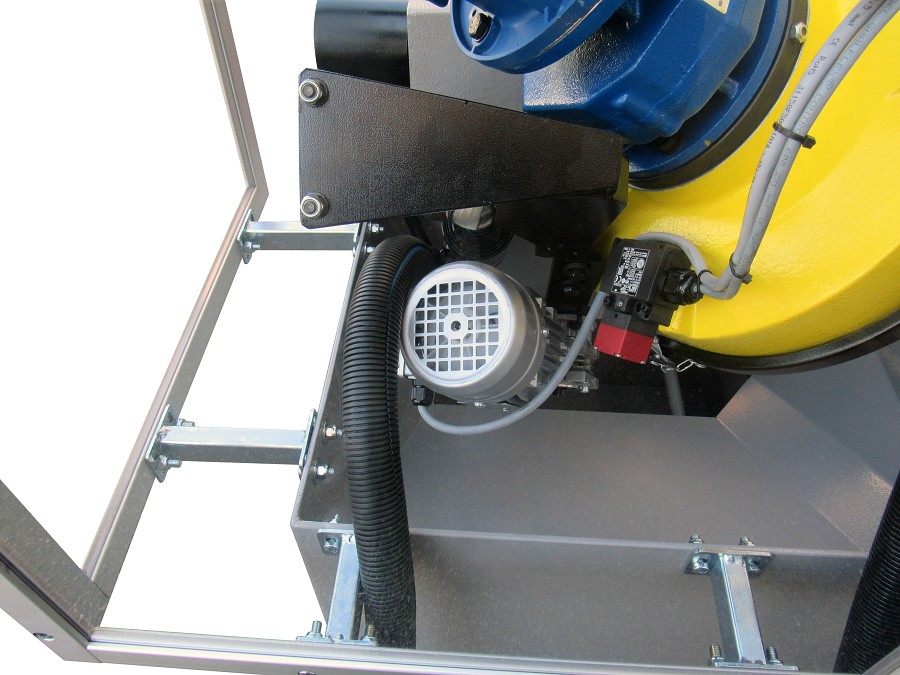

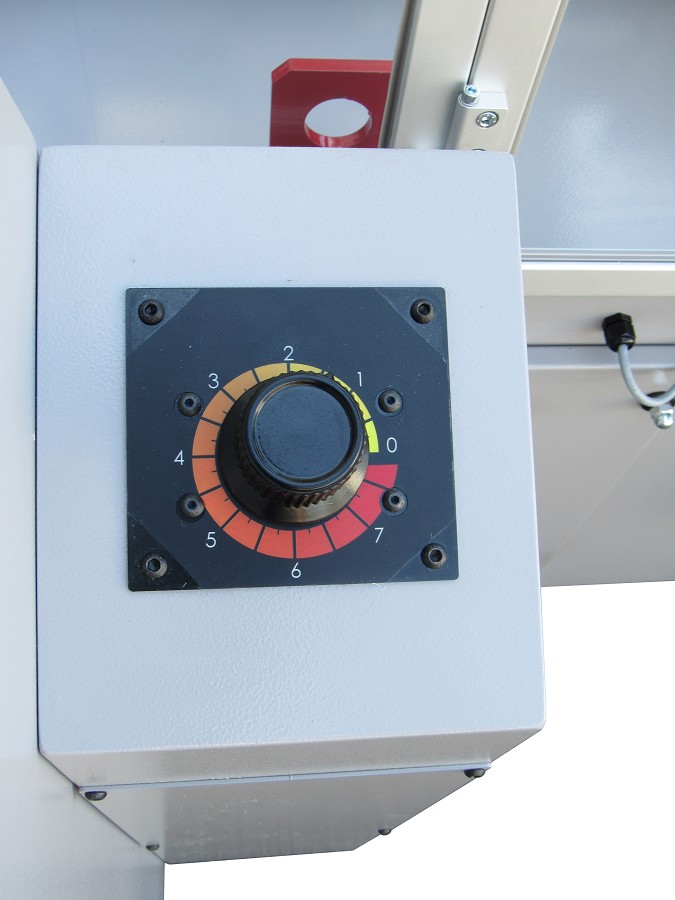

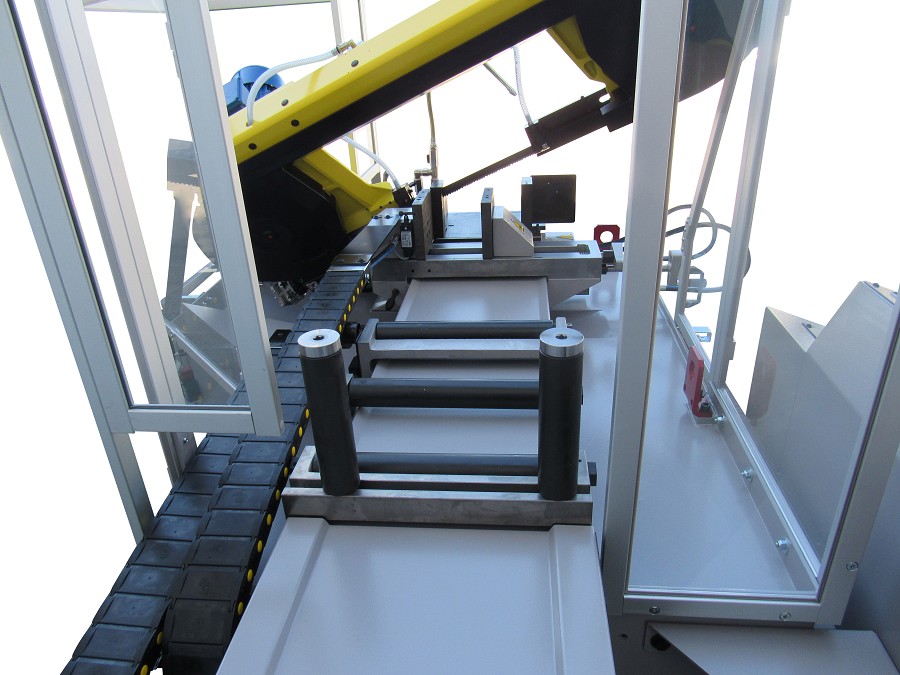

Automatic band saw for cutting 0°. Standard CN for cutting bars in different quantities and lengths within the same program. Saw bow, vices and carriage are moved with hydraulic cylinders. To optimize the cut, the descent of the saw blade is regulated with a balanced valve. Motor-driven saw blade brush. Screws for locking the workpiece placed both before and after the cutting position. The flat surfaces of the vise for cutting and carriage fitted with hardened plugs which can be replaced if worn.
Electronic speed control for a wide range of blade speeds.

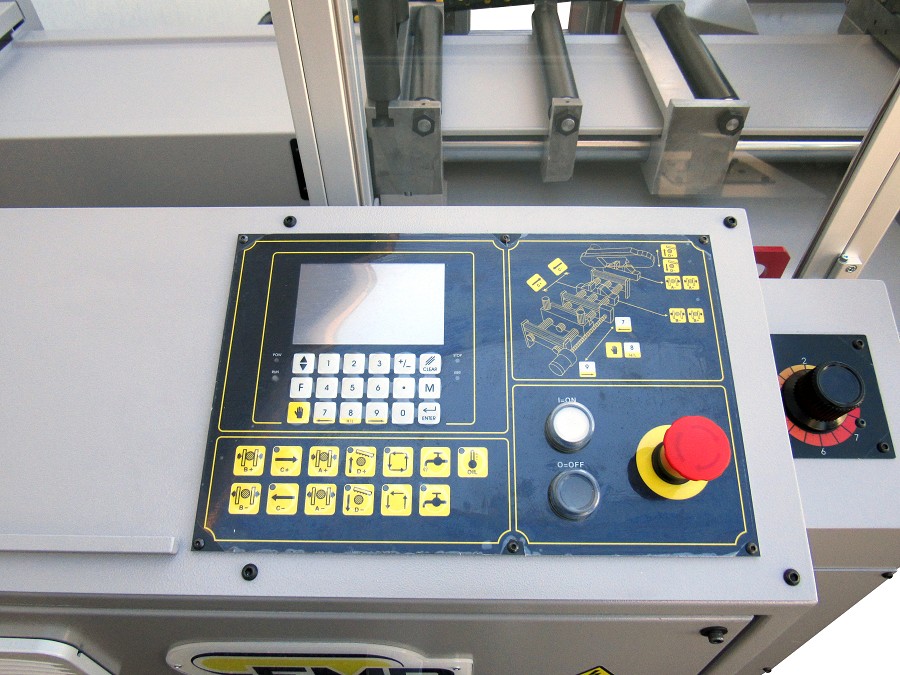

Controllers
CNCapacity round
260mmCapacity square
260x260mmCapacity rectangular
260x270mmBand speed
16-120m/minFeed length per take
500mmBand dimension
3300x27x0,9mmMachine length
1800mmMachine depth
2300mmMachine height
1700mmMachine weight
950kg
